Batemika UT-ONE S01A 1-channel Thermometer Readout Your browser does not support SVG.
UT-ONE S01A
UT-ONE S01A
UT-ONE S01A
UT-ONE S01A
UT-ONE S01A

UT-ONE S01A is an accurate and versatile 1-channel benchtop thermometer readout. UT-ONE S01A is capable of measuring platinum resistance thermometers, thermistors and thermocouples. UT-ONE S01A delivers full accuracy and functionality of the UT-ONE family in a compact and rugged format. UT-ONE S01A is used in connection with a computer with associated acquisition software and is ideal for wide variety of research&development activities.

Resistance probes (PRTs) can be measured in 4-wire connection configuration. Banana connectors are user friendly, easily used with banana plugs, bare wires or spade lugs.

UT-ONE S01A can be operated connected to the computer via USB interface in conjunction with UT-ONE Applications software. Power to thermometer readout is also supplied via USB cable.

Technical data
Main channels:
1
Acquisition time:
1 to 240 s
Probe Types:
Platinum resistance thermometers, Thermistors, Thermocouples
Temperature range:
-273 °C to 2100 °C max, limited by the thermometer probe
Cold junction compensation:
Internal, External
Communication interface:
USB
USB port power supply:
5 V DC, 0.1 A
Power consumption:
0.2 W typical, 0.5 W max
Weight:
0.350 kg
Ext. dimensions (WxHxD):
135x55x70 mm

More information is available in UT-ONE S01A User ManualPdf_icon Loading....

Specification summary
Probe: Platinum resistance th. Thermistors Thermocouple
Probe type: Pt100, Pt25, Pt200 NTC 2k, 3k, 10k K, J, T, E, N, S, R, B
Characterization: CVD, Polynom, ITS-90 SteinHart-Hart, Polynom Deviation function
Accuracy (Typical): ±0.006 °C ±0.001°C ±0.1 °C (Ext. CJC)
Effective resolution: 0.0005 °C 0.0001 °C 0.01 °C
Measurement current: 1 mA, 0.707 mA ±1% 20 μA, 14.1 μA ±1% n/a

If you would like to compare between thermometer specifications, please visit: Comparison Table

Order information
Description
Part no.
Prices*
UT-ONE S01A 1-channel Thermometer Readout
1340.00 €
R210A Reference resistor
340.00 €
LabVIEW driver and application
**

* Stated price is recommended price for customers in EU. Send and inquiry to info@batemika.com to get a formal quote. Price is given excluding VAT and shipping/handling costs. Batemika reserves the right to change stated prices without prior notice.

** Available for free-of-charge download at www.batemika.com

UT-ONE S01A Thermometer Readout Photo Gallery Your browser does not support SVG.

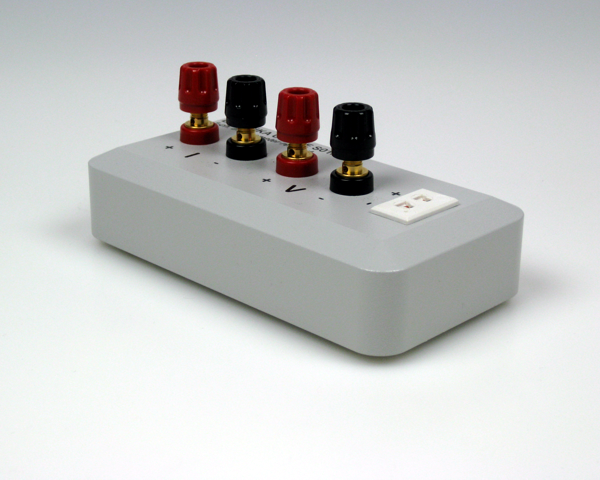

UT-ONE S01A Gold plated Banana conectors

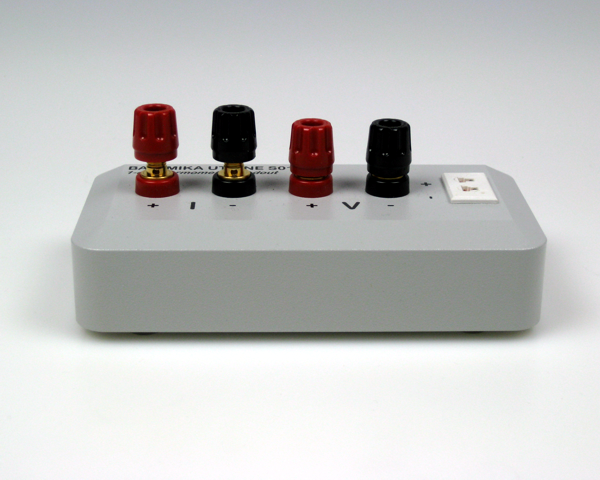

UT-ONE S01A Gold plated Banana conectors

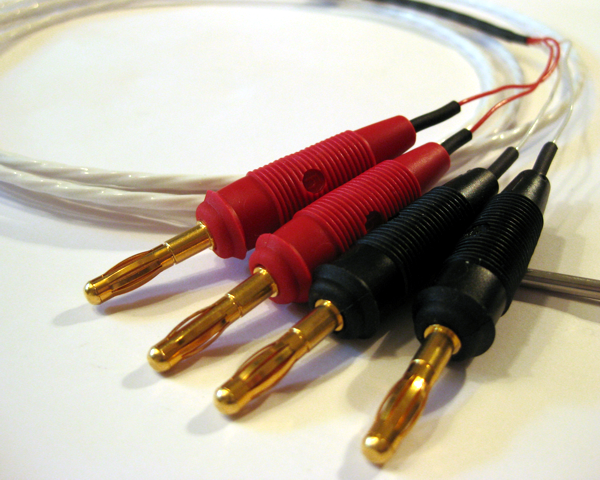

Gold plated banana plugs - Pt100 probe

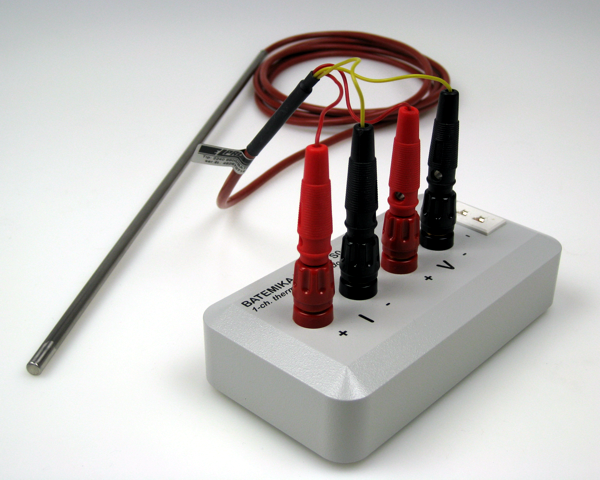

UT-ONE S01A  with connected Pt100 probe

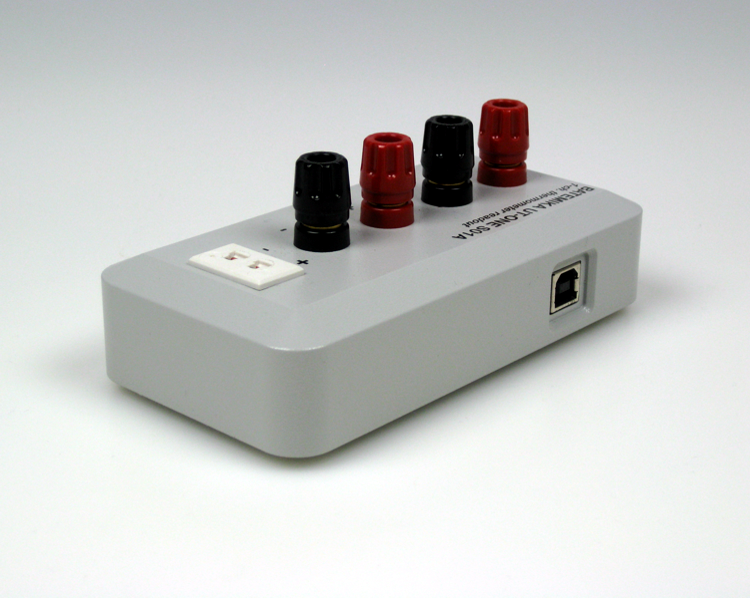

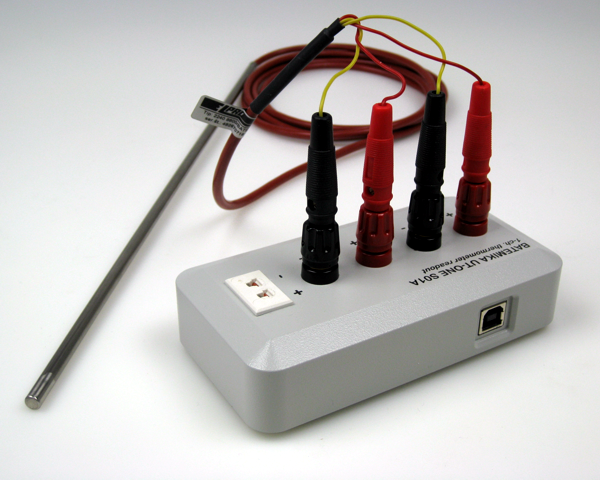

UT-ONE S01A  with connected Pt100 probe - Lateral USB view

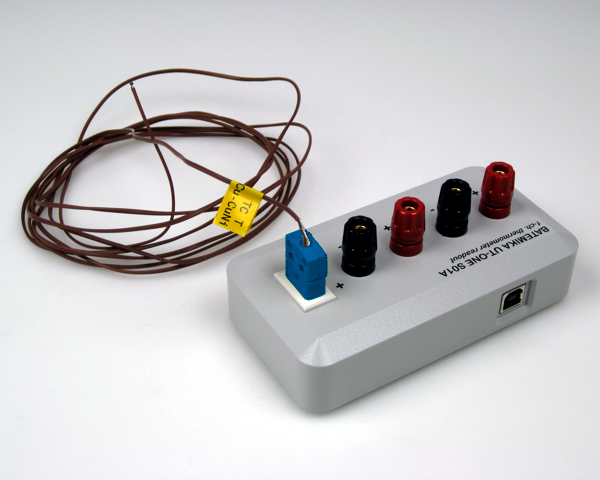

UT-ONE S01A with connected T type Thermocouple

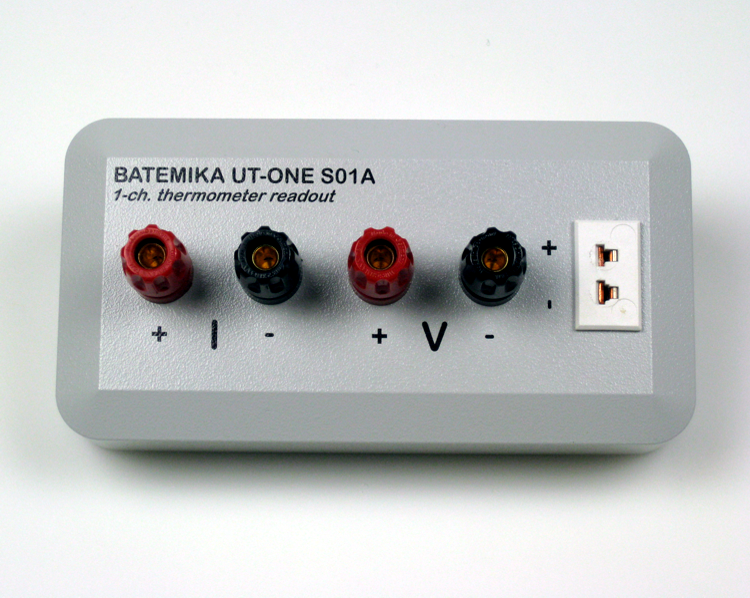

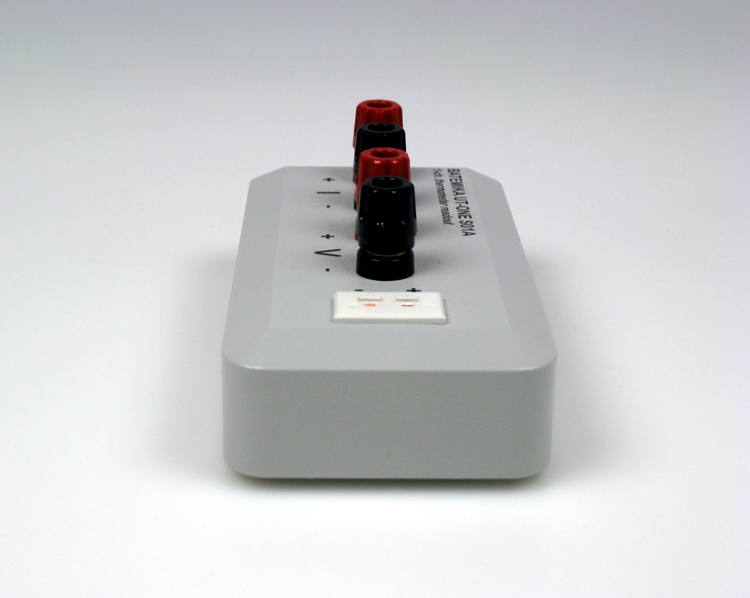

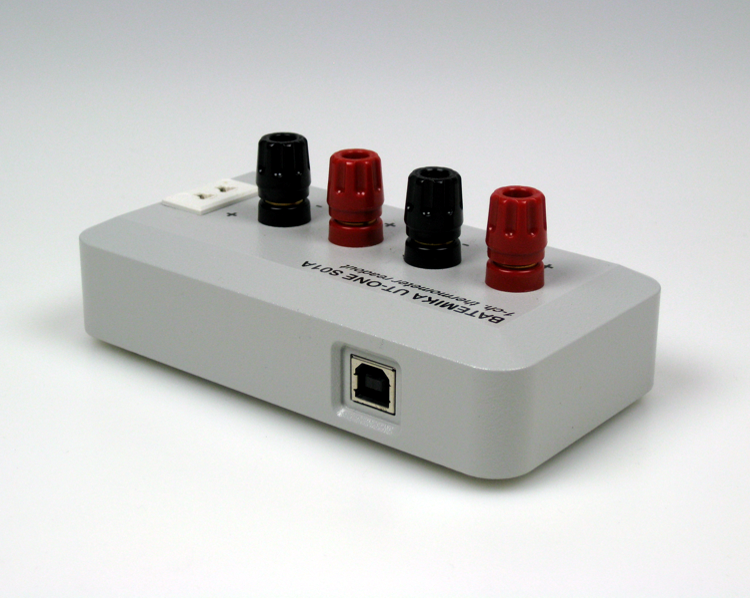

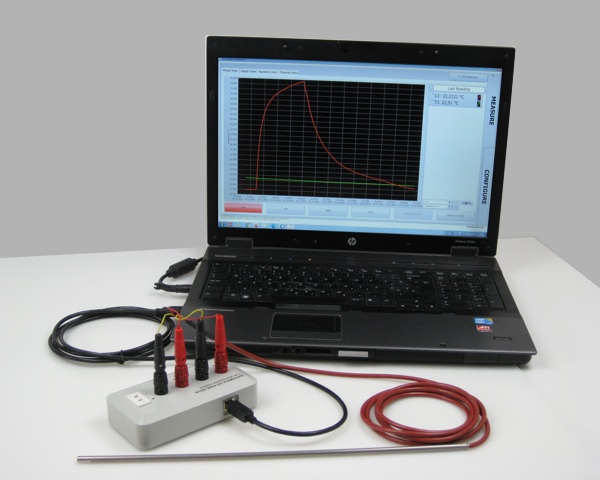

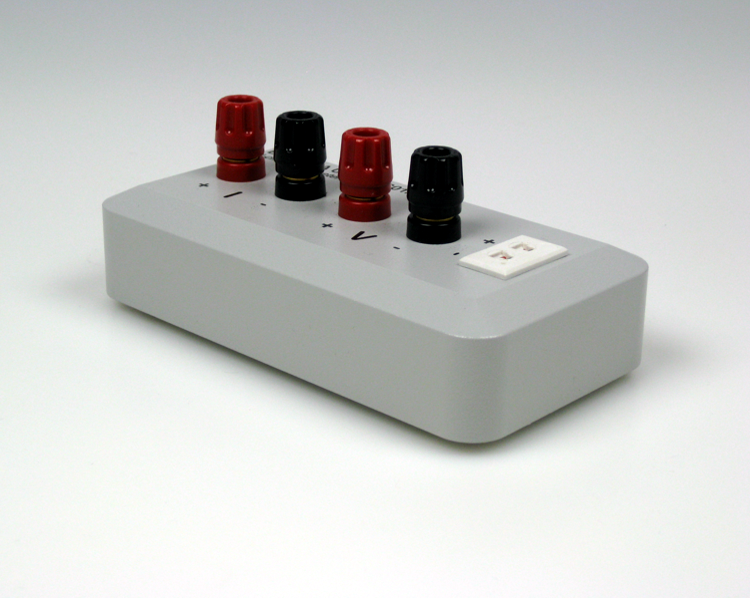

UT-ONE S01A

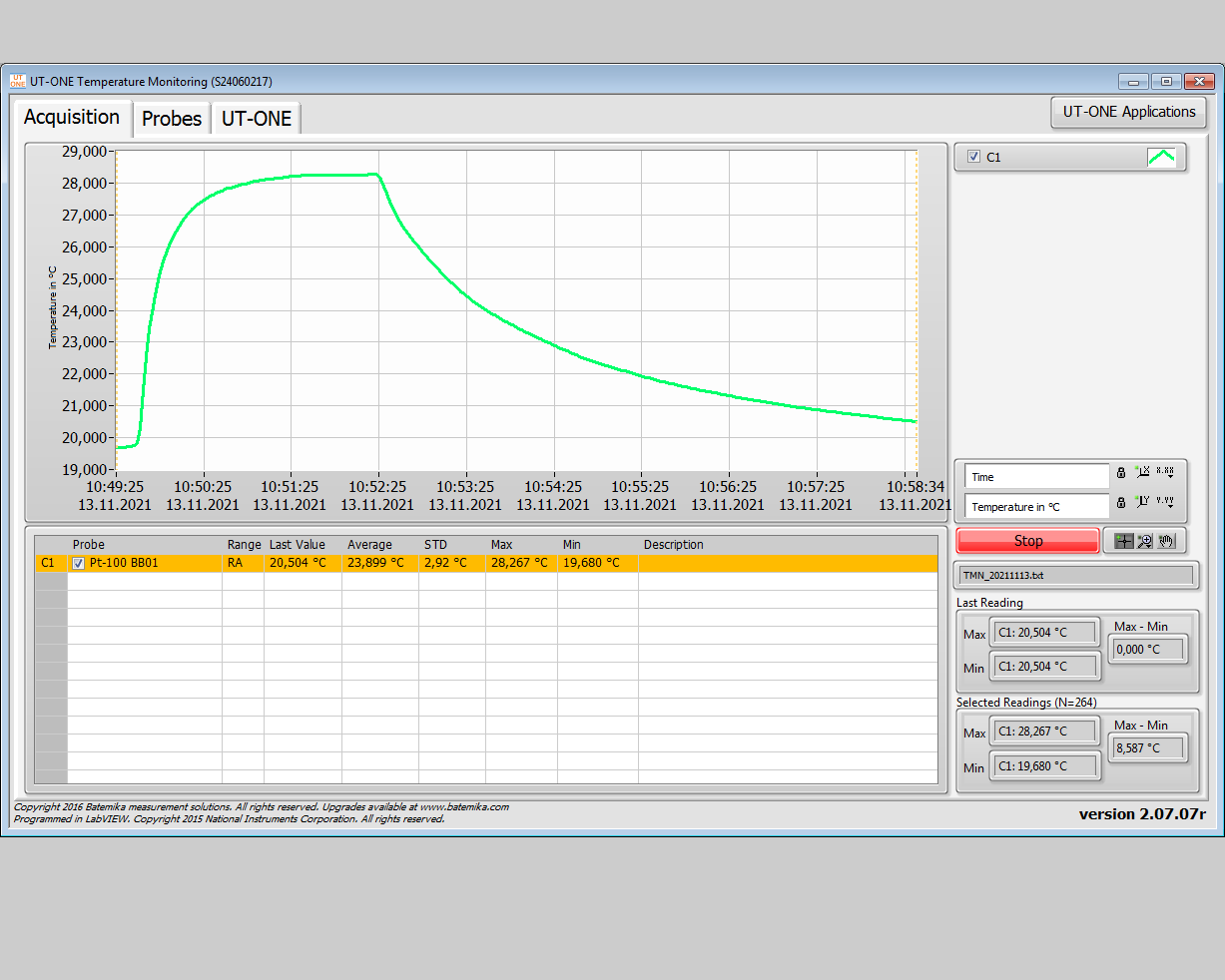

UT-ONE Temperature Monitoring - Graphical and Numerical (Max, Min, Average, STD, (Max-Min)) presentation of measured data

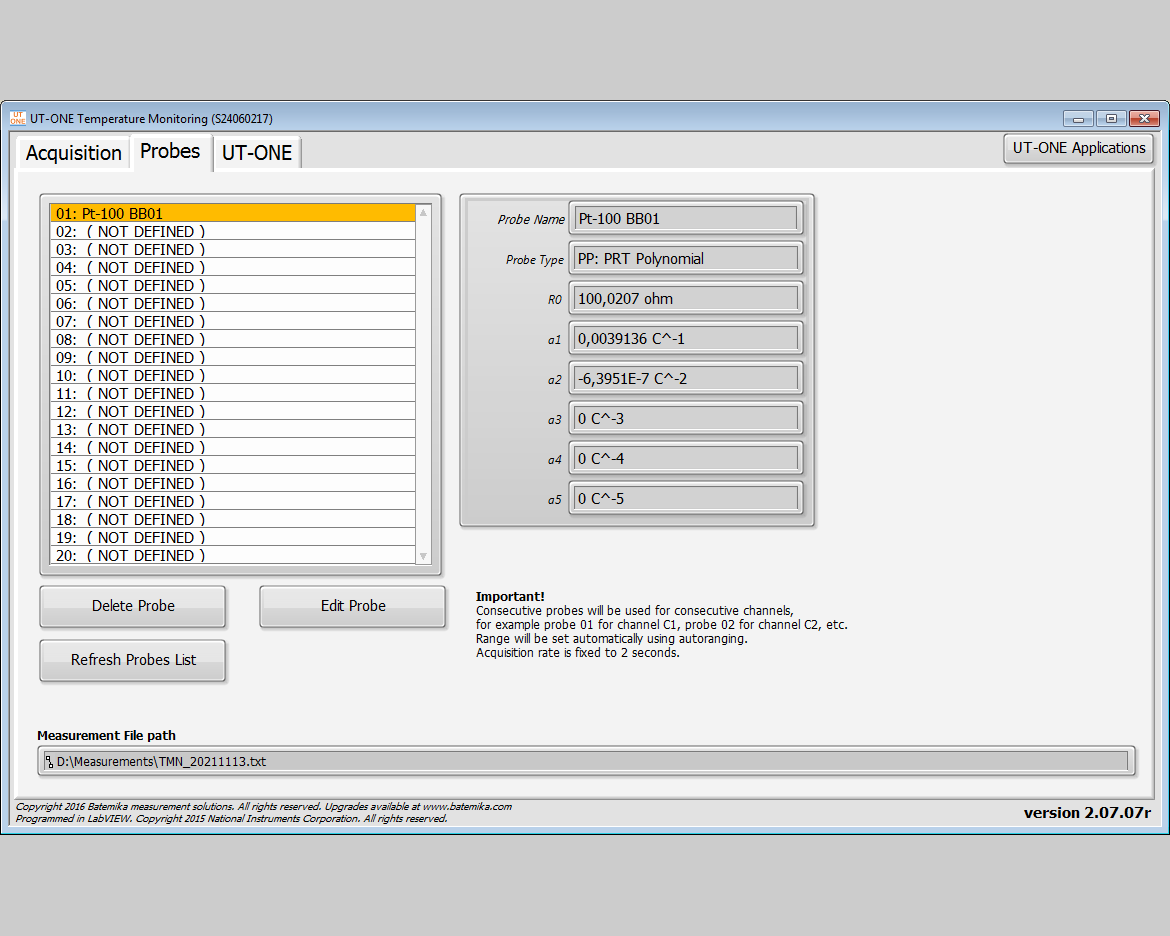

UT-ONE Temperature Monitoring - Probe defenition

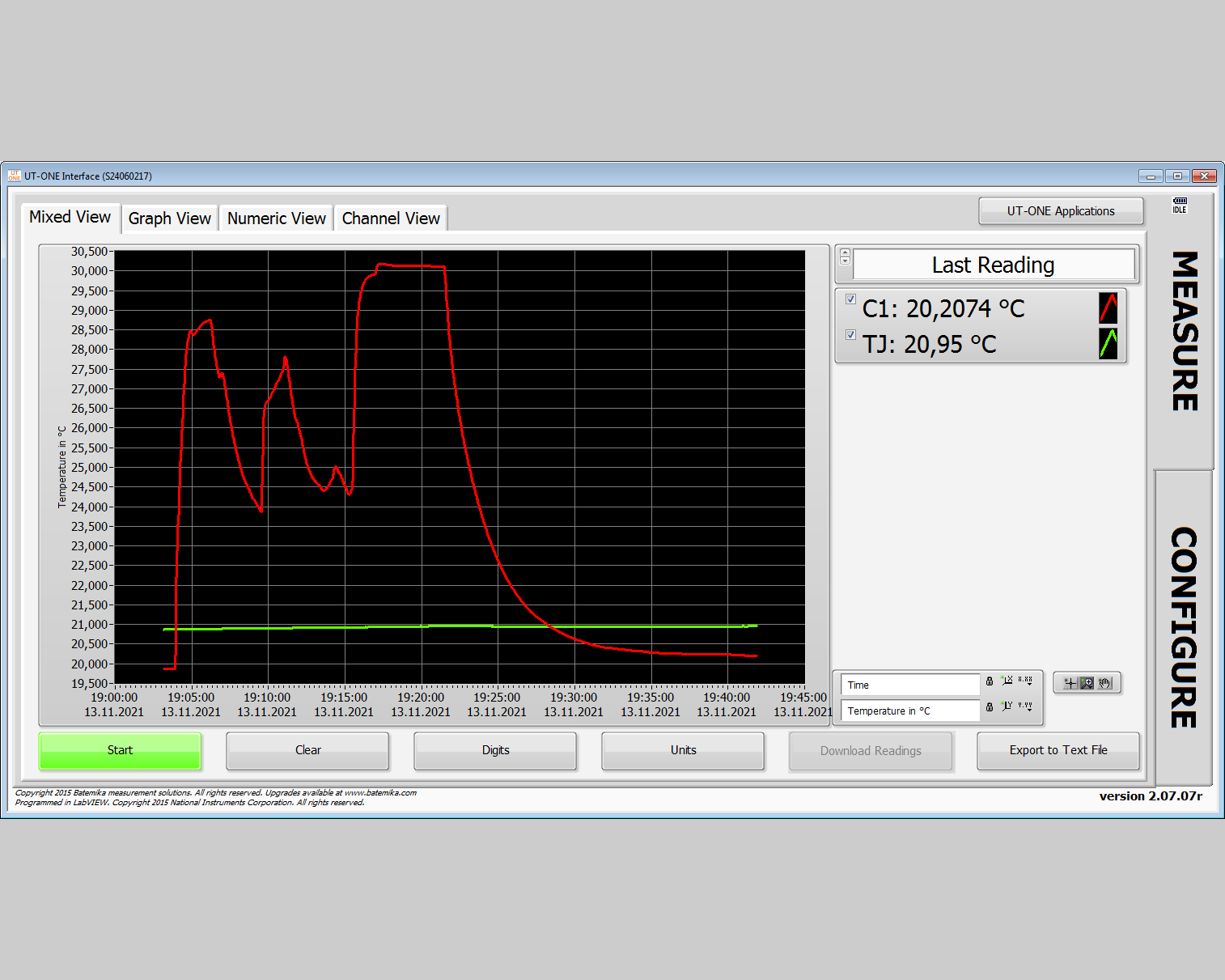

UT-ONE Interface - Mixed View - Graphical and Numerical presentation of measured data

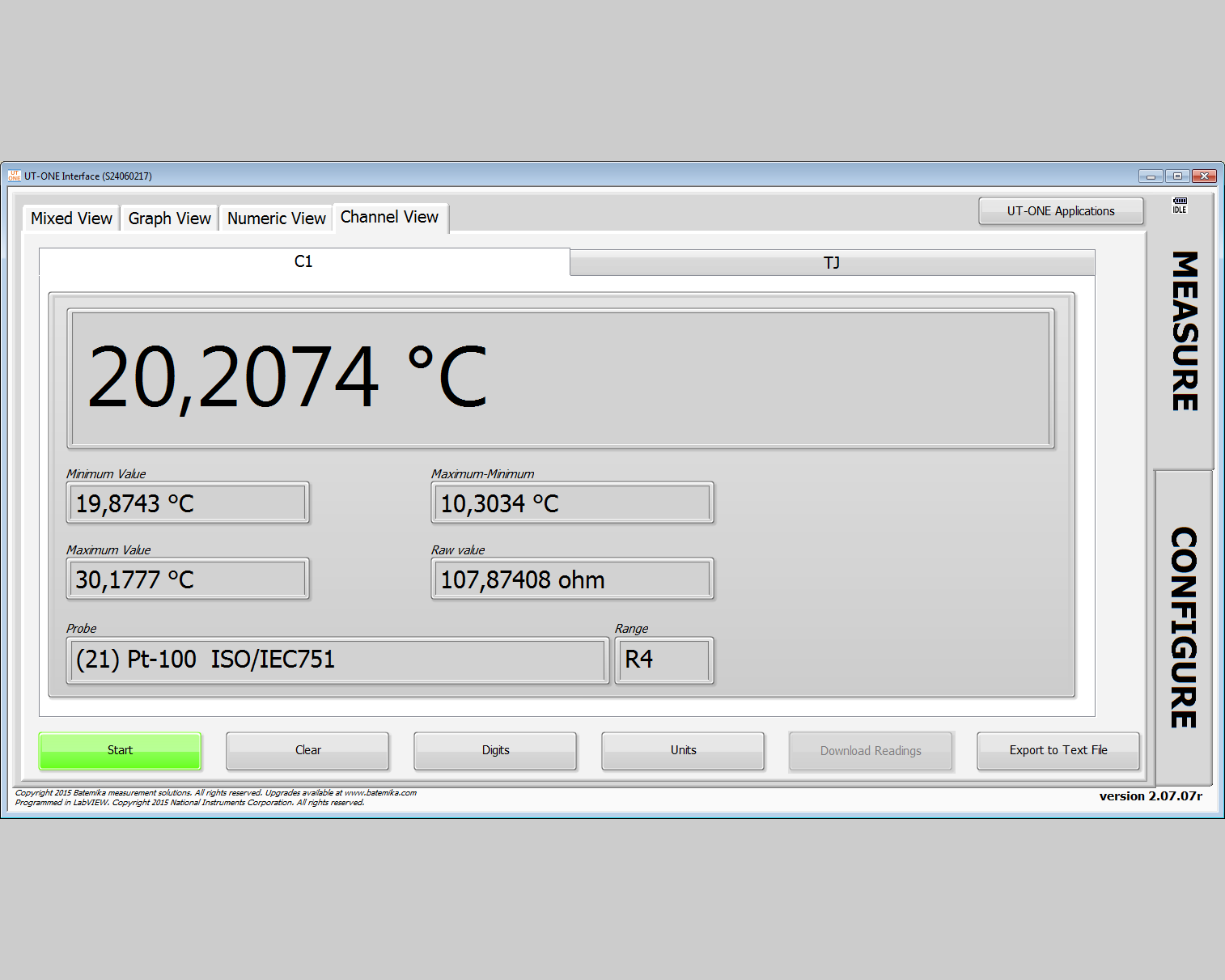

UT-ONE Interface - Channel View of UT-ONE S01A Thermometer readout

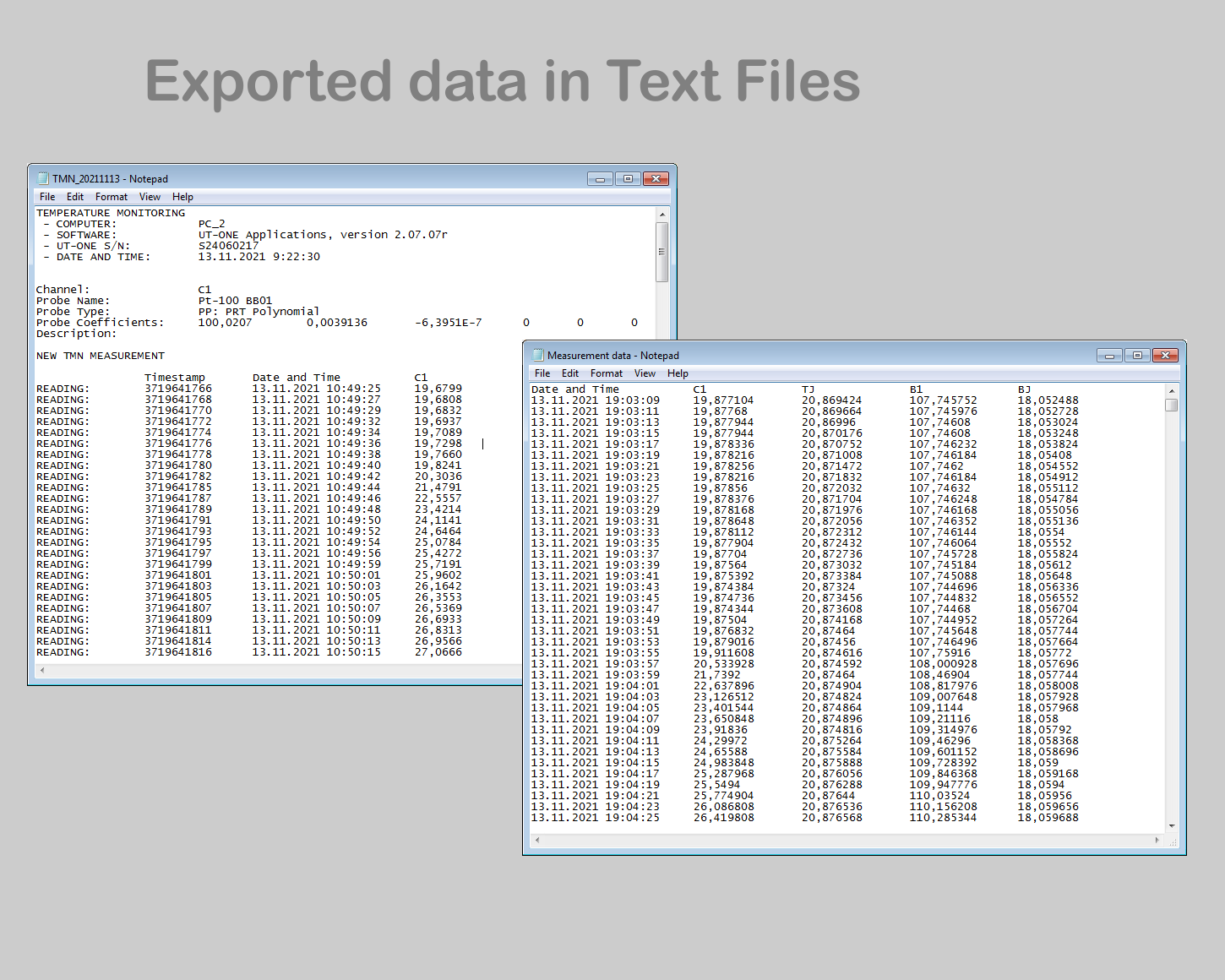

UT-ONE Temperature Monitoring and UT-ONE Interface - Exported measurements in Text Files

UT-ONE Applications Your browser does not support SVG.

To get a quote or more information contact us at info@batemika.com .
