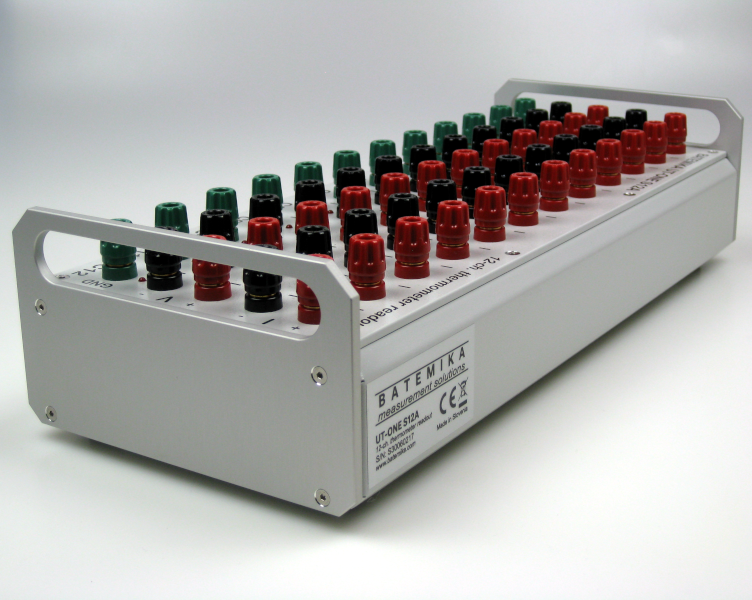

UT-ONE S12A is an accurate and versatile 12-channel benchtop thermometer readout. UT-ONE S12A is capable of measuring platinum resistance thermometers, thermistors and thermocouples.

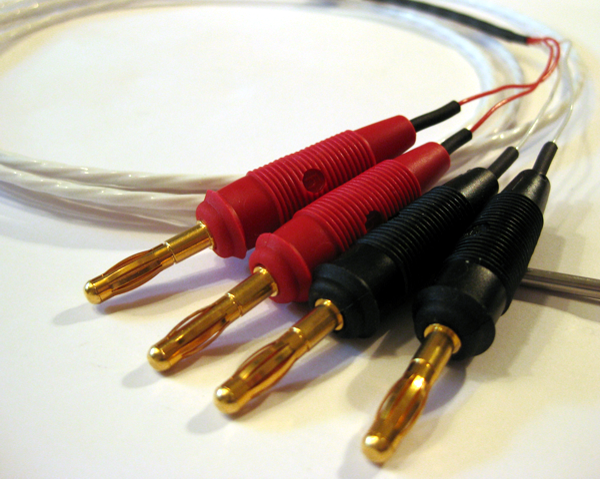

Resistance probes (PRTs) can be measured in 4-wire, 3-wire or 2-wire connection configuration. Banana connectors are user friendly, easily used with banana plugs, bare wires or spade lugs.

UT-ONE S12A can be connected to the computer via the RS232 or USB interface using the UT-ONE Applications software. Power to thermometer readout is supplied via USB cable.

Technical data
Main channels: 12 (consecutive)
Acquisition time per channel: 1 to 240 s
Keep-warm currents: Automatically set on inactive channels
Probe Types: Platinum resistance thermometers, Thermistors, Thermocouples
Temperature range: -273 °C to 2100 °C max, limited by the therm. probe
Cold junction compensation: Internal, External
Communication interface: USB (standard), RS232 (optional), GPIB (optional)
USB port power supply: 5 V DC, 0.2 A
Power consumption: 0.3 W typical, 1 W max
Weight: 2.4 kg
Ext. dimensions (WxHxD): 380x90x155 mm
Ambient conditions monitoring: Optional external probe for air temperature & relative humidity

More information is available in UT-ONE S12A User Manual Pdf_icon Loading... .

Specification summary
Probe:	Platinum resistance th.	Thermistors	Thermocouple
Probe type:	Pt100, Pt25, Pt200	NTC 2k, 3k, 10k	K, J, T, E, N, S, R, B
Characterization:	CVD, Polynom, ITS-90	SteinHart-Hart, Polynom	Deviation function
Accuracy (Typical):	±0.006 °C	±0.001°C	±0.1 °C (Ext. CJC)
Effective resolution:	0.0005 °C	0.0001 °C	0.01 °C
Measurement current:	1 mA, 0.707 mA ±1%	20 μA, 14.1 μA ±1%	n/a

If you would like to compare between thermometer specifications, please visit: Comparison Table

Order information
Description Part no. Prices*
UT-ONE S12A 12-channel Thermometer Readout BH-B007 n/a
Ambient conditions probe BH-B004 250.00 €
Plastic carrying case BA-G012 250.00 €
R210A Reference resistor BH-B006 590.00 €
LabVIEW driver and application BS-B005 **

* Stated price is recommended price for customers in EU. Send and inquiry to info@batemika.com to get a formal quote. Price is given excluding VAT and shipping/handling costs. Batemika reserves the right to change stated prices without prior notice.

** Available for free-of-charge download at www.batemika.com

UT-ONE S12A is no longer available for new orders.

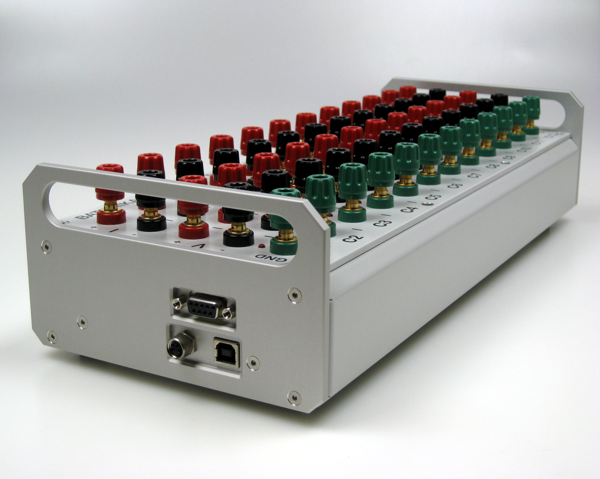

UT-ONE S12A Gold plated Banana conectors

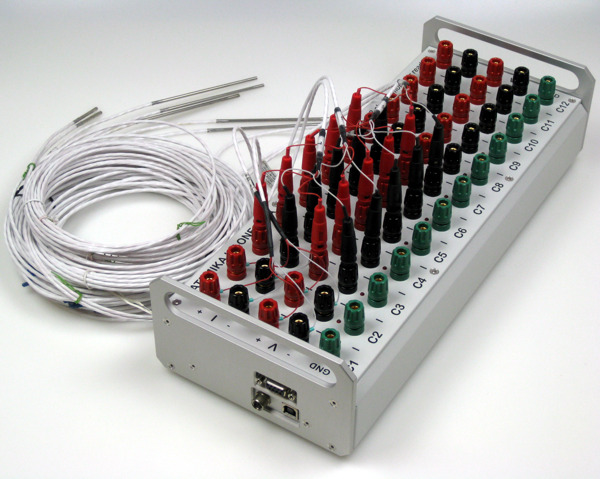

UT-ONE S12A with connected seven Pt100 probes

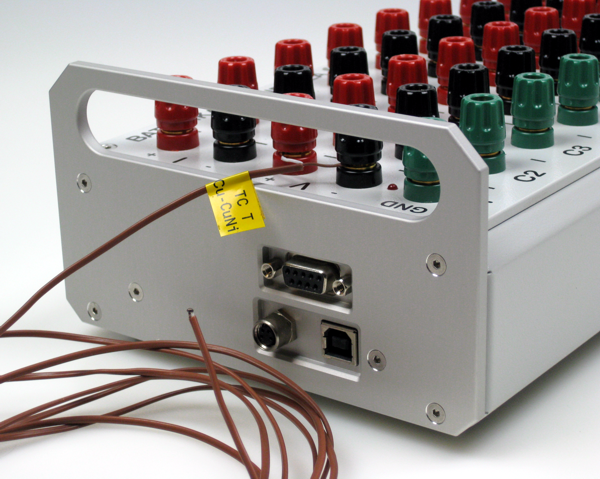

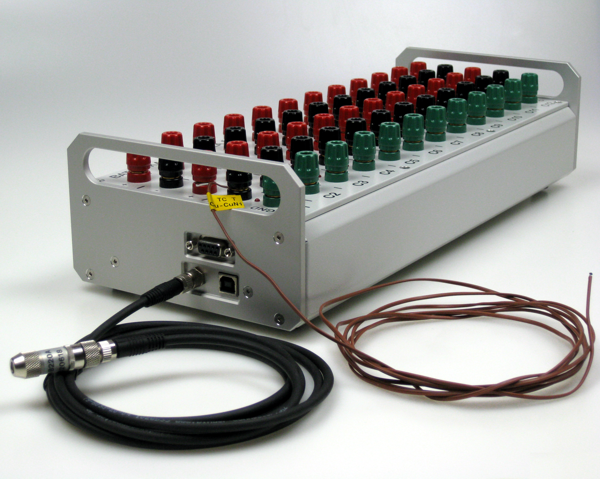

UT-ONE S12A with T type Thermocouple and Ambient probe

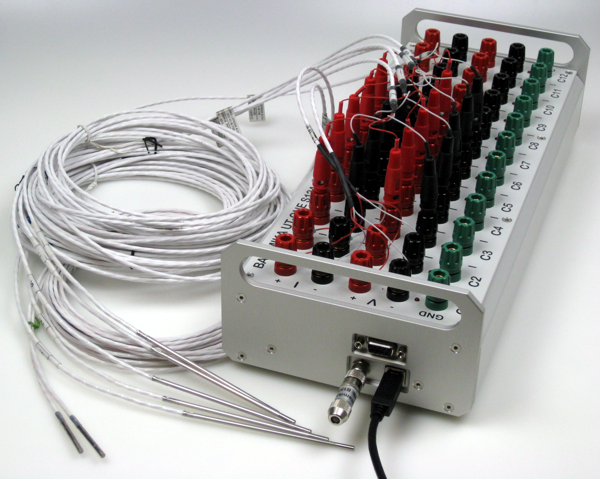

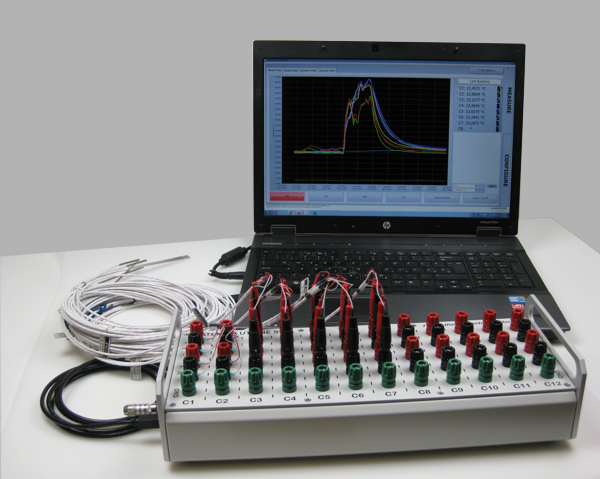

UT-ONE S12A with connected seven Pt100 probes and Ambient probe

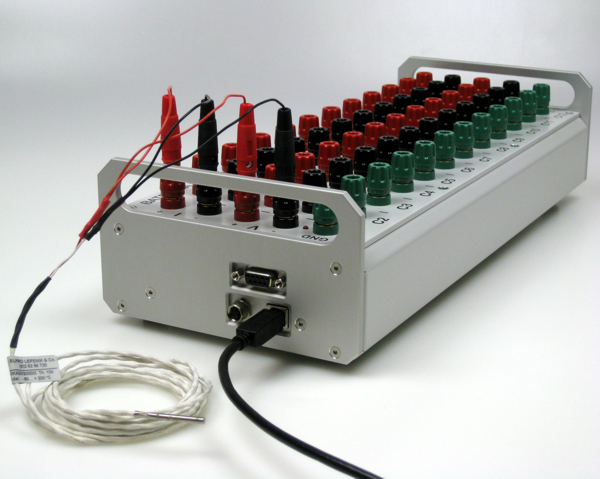

UT-ONE S12A with connected 10 kΩ Therimistor

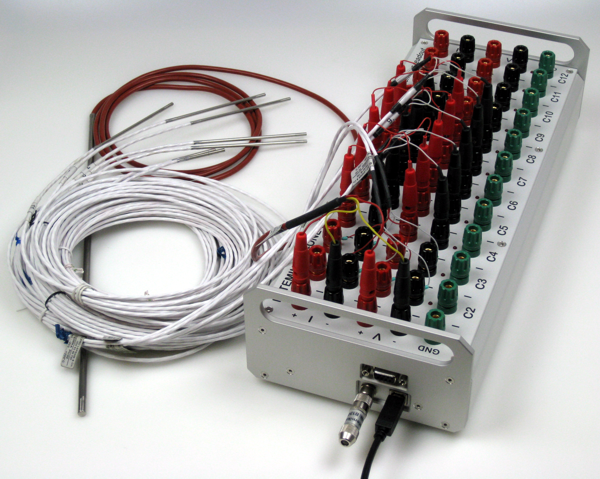

UT-ONE S12A with reference Pt100 probe and seven Pt100 probes, units under calibration test

UT-ONE Temperature Monitoring - Graphical and Numerical (Max, Min, Average, STD, (Max-Min)) presentation of measured data

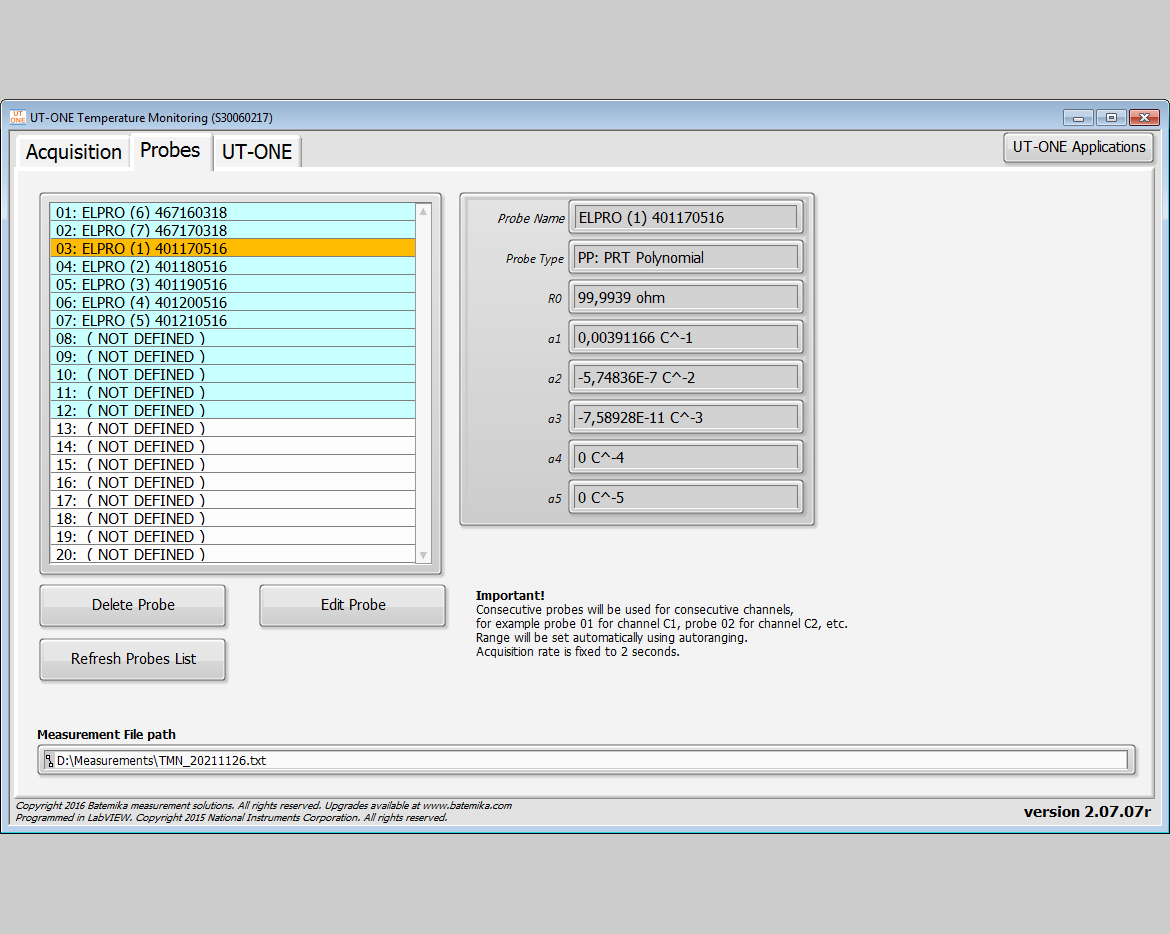

UT-ONE Temperature Monitoring - Probe defenition

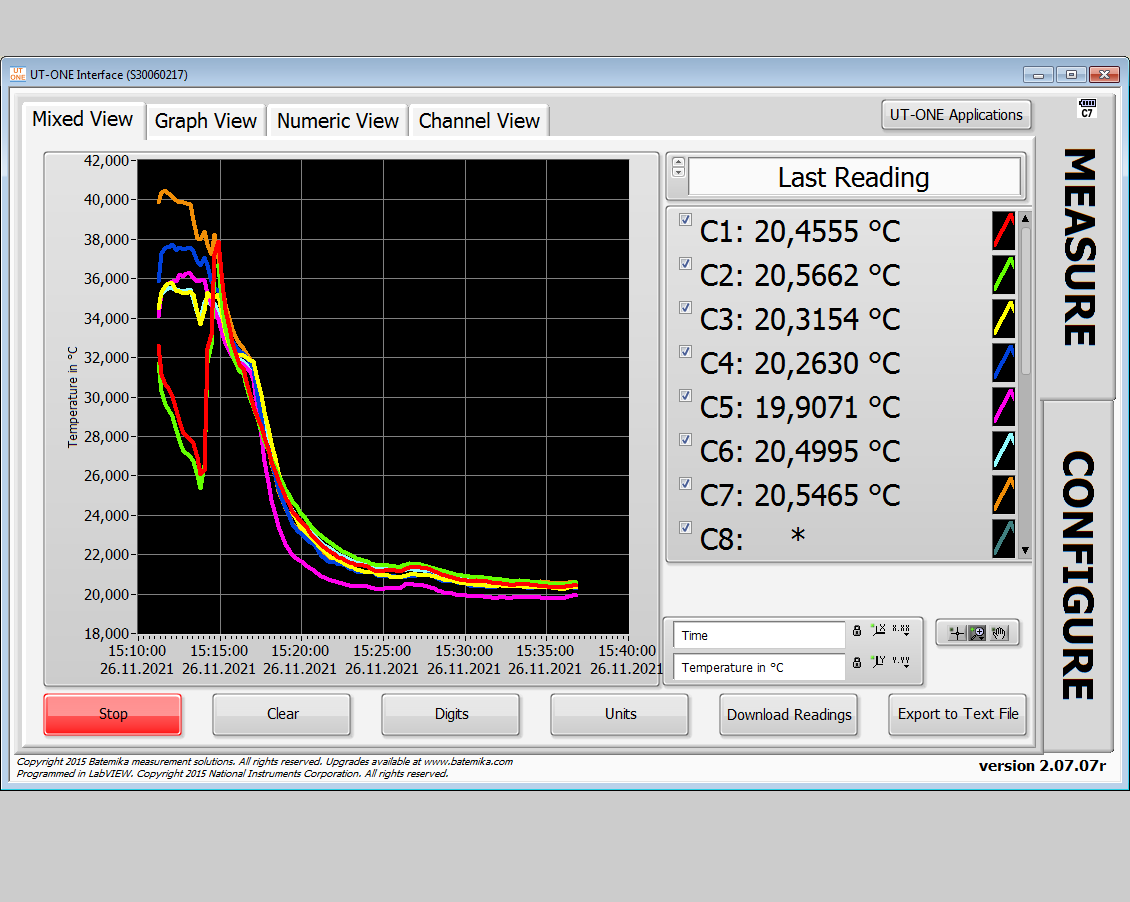

UT-ONE Interface - Mixed View - Graphical and Numerical presentation of measured data

Ambient conditions probe with 2 m extension cable

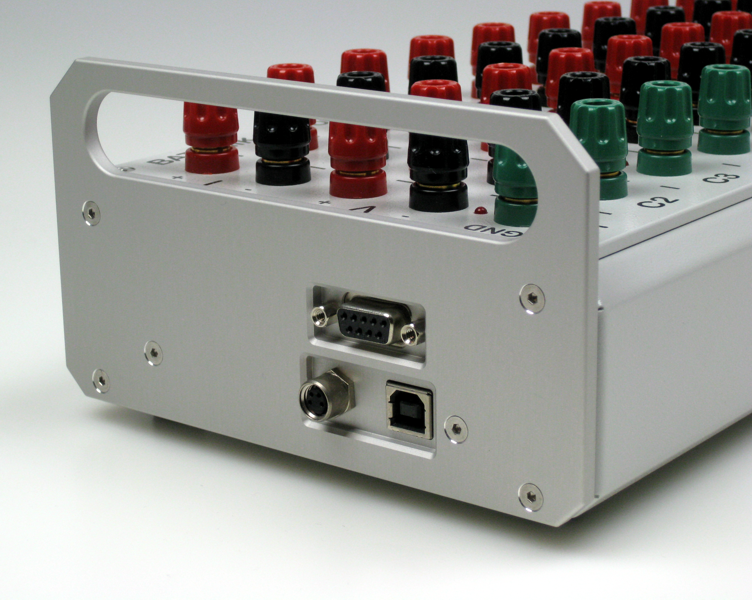

Ambient conditions probe connector without plastic protective plug

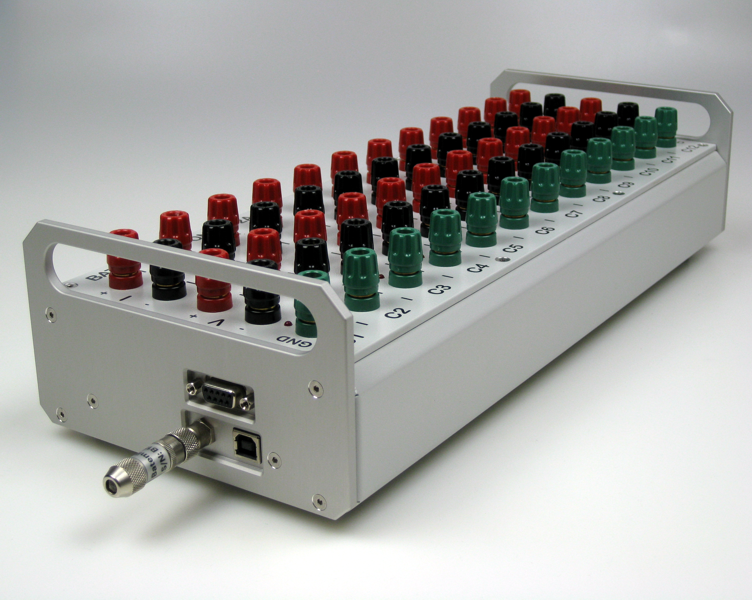

Ambient conditions probe - direct connection

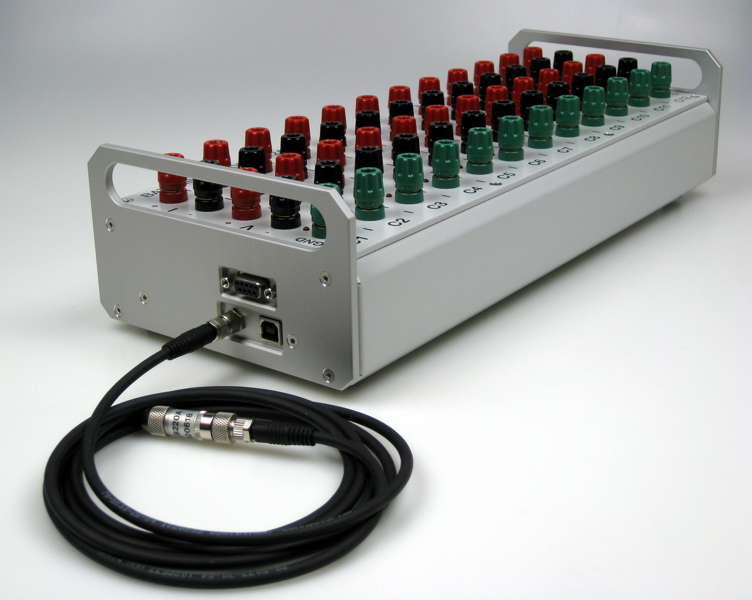

Ambient conditions probe - connection with 2 m extension cable

Ambient probe is used for the measurement of ambient conditions (air temperature - TA and relative humidity - RH). It should be connected to the 4-pole circular connector located above the USB and RS232 sockets, directly or indirectly with the 2m extension cable.

Specifications for TA probe
Range: -20 °C to 70 °C
Accuracy: ±0.5 °C
Resolution: 0.01 °C
Sampling period: 4 seconds
Sensor type: Sensirion SHT75

Specifications for RH probe
Range: 10 % to 90 % (non condensing)
Accuracy: ±2%
Resolution: 0.1 %
Sampling period: 4 seconds
Sensor type: Sensirion SHT75
